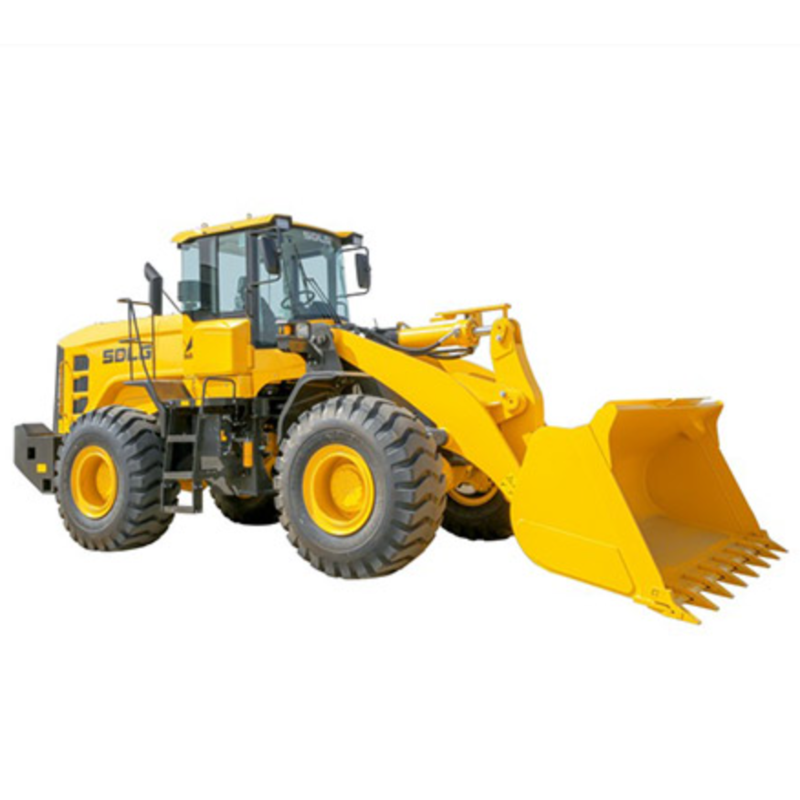

Overall Dimension

Transmission System

L×W×H

8300×3024×3426 mm

Torque converter

Single-stage four-element double-turbine hydraulic torque converter

Wheel base

3300 mm

Transmission type

Planetary power shift

Min. ground clearance

435 mm

Gears

Forward 2 / Reverse 1

Max. dumping height

3060 mm

Speed at forward gear I

0~13 km/h

Lifting height

4145 mm

Speed at forward gear II

0~38 km/h

Dumping distance

1230 mm

Speed at reverse gear I

0~17 km/h

Dumping angle

-45°

Hydraulic System

Bucket rollback at ground level

43°

Type

Hydraulic pilot control

Wheel tread

2250 mm

Total time

≤ 9.8 s

Steering angle

36°

Brake System

Horizontal crossing radius

7120 mm

Service brake type

Air over oil caliper disc brake

Min. turning radius

6200 mm

Parking brake type

Electric pneumatic internal expanding shoe type

Overall Parameters

Steering System

Bucket capacity

3.2 m³

Type

Load sensing full hydraulic articulated steering

Rated load

5400 kg

System pressure

16 MPa

Operating weight

17220 kg

Fill Capacity

Max. tractive force

165 kN

Fuel

300 L

Max. breakout force

≥170 kN

Hydraulic oil

240 L

Tipping load

≥110 kN

Engine oil

20 L

Engine

Transmission oil

44 L

Model

WD10G220E23

Drive axle oil

30 + 26 L

Type

Inline, water-cooled, dry cylinder liner, direct injection

Braking system fluid

4 L

Rated power

162 kW

Rated speed

2000 r/min

Engine displacement

9726 ml

Cylinder bore/stroke

126/130 mm

Max. torque / speed

986 N·m / 1300~1400 r/min

Emission standard

GB 20891-2007

Min. fuel-consume ratio

215 g/kW·h
